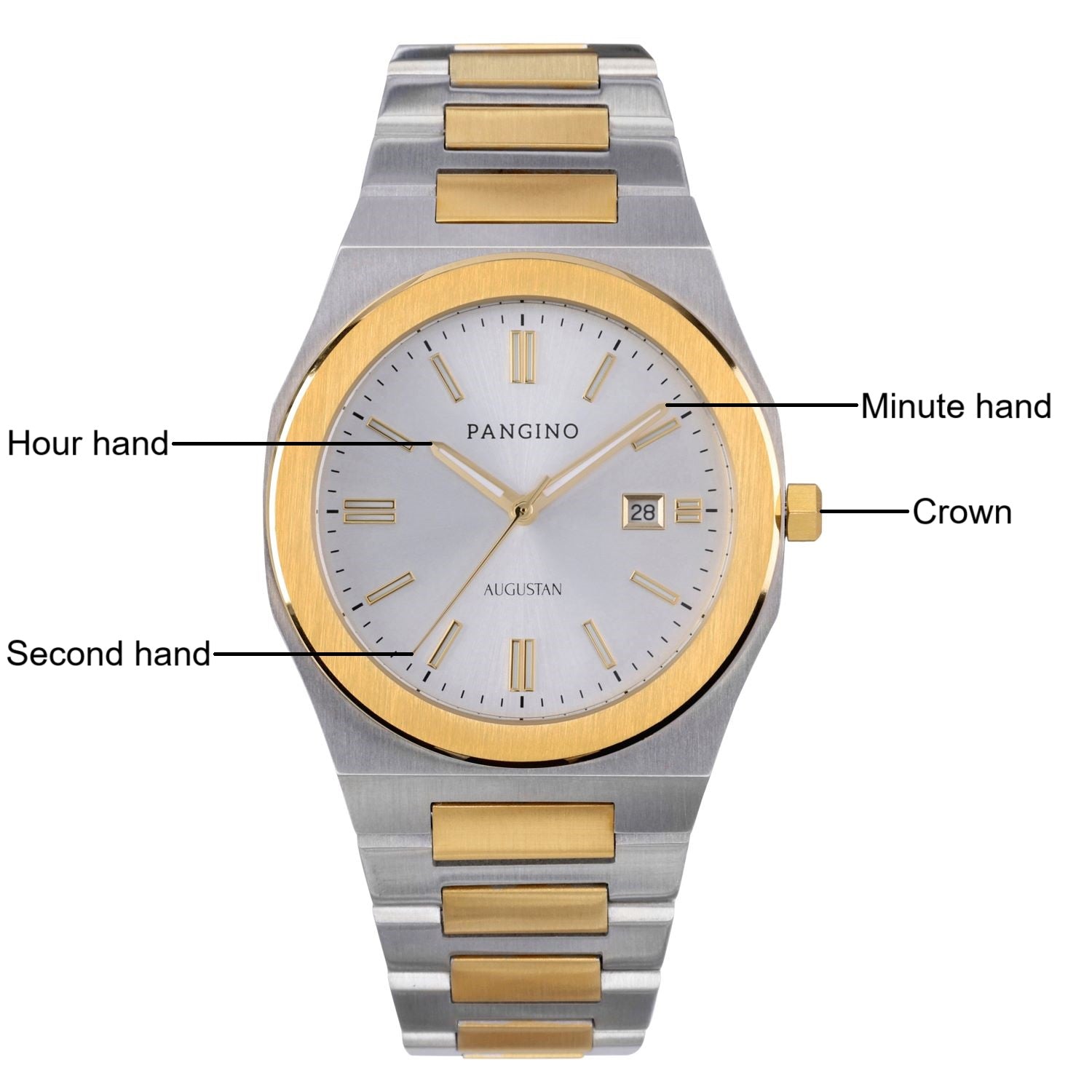

1. Pull the crown out to the second position (two clicks).
2. Turn the crown to set the hour and minute hands to the proper time.
3. Push the crown back into the normal (original) position once the time is selected. Your quartz watch should begin keeping time immediately.

Please note: The time setting instructions apply to all Pangino watches. If a plastic crown stopper is present (on most of our quartz watches one is), it will need to be removed before the time is set. If your quartz watch does not begin keeping time immediately once the crown is in the normal (original) position, the battery may be expired.

Not all watches have a second hand, and so you may need to wait to see that your quartz watch is keeping time, as without a second hand a ticking motion will not be visible. If a second hand is present, however, you will see it ticking right away once the watch is set and is keeping time.

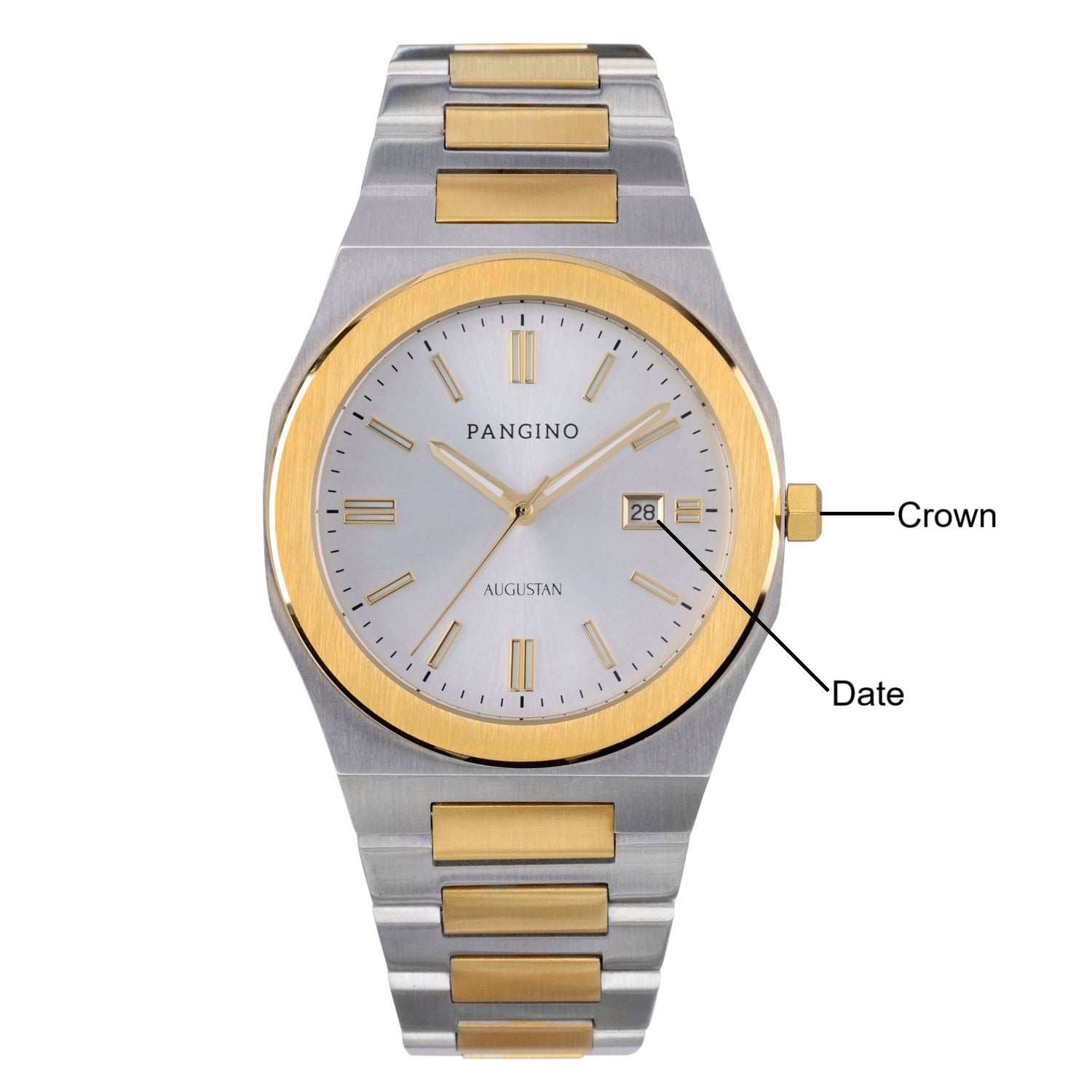

1. Pull the crown out to the first position (one click).
2. Turn the crown to select the date.
3. Push the crown back into the normal (original) position once the date is selected.

Please note: The date setting instructions apply to all Pangino watches with date windows. Not all watches have a date window. If a plastic crown stopper is present (on most of our quartz watches one is), it will need to be removed before the date is set.

We advise avoiding setting the date when the watch hands are pointing between the time of 8pm and 4am, as the gears for the date change are already in motion during these hours. Doing so may result in the date not changing properly, or could even damage the movement.

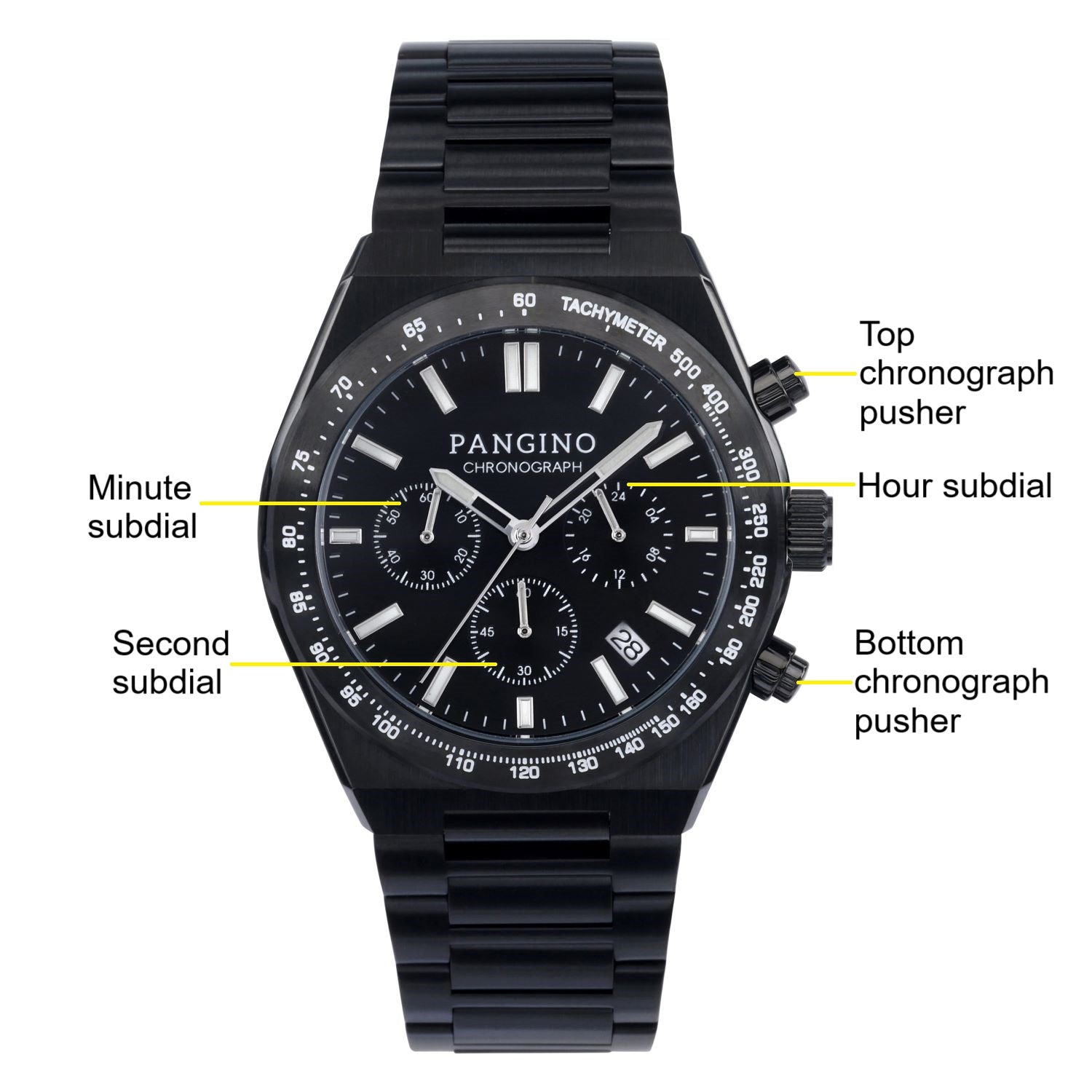

1. The time measurement is indicated by the movement of the chronograph hands, which are located on the subdials. Most chronographs can measure up to 60 minutes, depending on the movement.
2. Press the top chronograph pusher to start the chronograph.
3. Press the top chronograph pusher again to stop the chronograph. Press the top chronograph pusher again to restart and stop the chronograph as needed.
4. When stopped, press the bottom chronograph pusher to reset the chronograph.

Please note: These chronograph setting instructions only apply to quartz Pangino watches with chronographs. Certain chronograph watches will have only the second subdial begin ticking once the time is set and the crown is in the normal (original) position, with the main second hand instead being operated only by the chronograph function (as the second counter hand), and remaining fixed in place when not being used.

This is typical of meca-quartz chronograph movements. Some chronograph movements may have additional functions beyond the scope of what is listed in this manual.

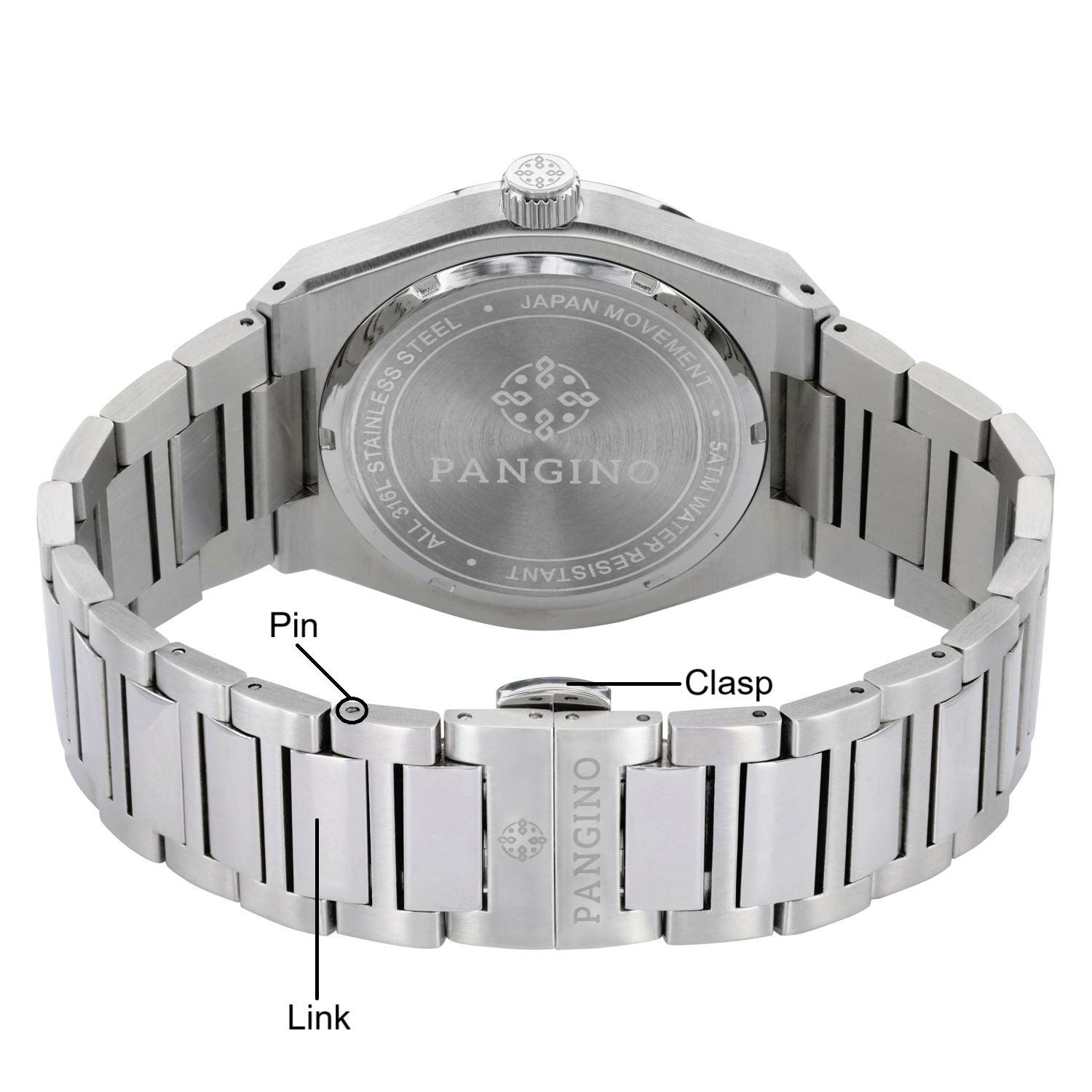

These instructions apply to Pangino watches with bracelets that utilize a push-pin mechanism to hold the links in place. If you do not have experience resizing watch bracelets, we strongly recommend taking your watch to a watch repair shop or reputable jeweler to get it done professionally. There is the possibility of scratching or damaging the watch if this process is not done correctly.

Pangino is not responsible for any scratches or damage incurred during the bracelet resizing process. A link removal tool is provided by us with every order, if you intend to complete this process yourself. The providing of this tool does not mean that Pangino encourages every customer to attempt this process themselves.

We reiterate that if you are unfamiliar with this process, we strongly advise taking the watch to a professional. Additional tools not provided by Pangino may also be needed during this process, which are the sole responsibility of the customer to acquire, and not the responsibility of Pangino to provide.

Special note regarding plated watches: Be especially careful when resizing the bracelet of a plated watch. Links can often be more difficult to remove on plated watches, and there is also a greater risk of scratching or damaging a plated watch during the resizing process. If you are inexperienced with this process or encounter any resistance during this process, you should take your plated watch to a reputable jeweler or watch repair shop to get the bracelet resizing process performed professionally.

Step 1

Prepare your work space by ensuring you are working on a flat surface. We also advise keeping the watch itself on a soft surface to avoid any scratches. Ensure the end piece/small pin pusher that goes on the link removal tool is present and tightly secure.

If it is not present, then place one at the end of the link removal tool and secure it using the end fastener that should be placed over it (the other part that screws along the grooved end of the link removal tool).

Step 2

Place the watch on your wrist and close the clasp. Roughly estimate how many links should be removed in order to fit your wrist. We advise trying to remove an equal number of links from either side of the bracelet if possible, so that the clasp is centered when closed.

Step 3

Place the bracelet on the link removal tool. Adjust the circular platform to raise or lower the bracelet as needed to get the best position where the pin can most easily be pushed out of the pinhole. Ensure that the pinhole of the bracelet link whose pin you are removing is centered in between the gap of the link removal tool's base, so that the pin will be pushed in between the gap, and not into the base of the tool itself.

Step 4

Use the link removal tool to push the pin of the chosen link outwards towards the direction indicated by the arrow on the back of the link. Twist the tool downwards until the pin is almost completely out. Do not twist the tool all the way down until it is touching the link itself. Then, pull out the pin manually. A longer pin pusher tool (not provided by Pangino) may need to be used to push out some more stubborn pins all the way.

Proceed to repeat this process slowly and carefully by removing one or two links from either side first, and then progress to remove more links as needed to get the best fit. Continue this process until enough links are removed so that the watch can fit your wrist in a comfortable manner when the clasp is closed, and that it is not too tight or too loose. You can test the exact fit once the pins are added back and the links are connected again, which is covered in step 5.

Take your time during this process and be patient. If you encounter too much resistance from a particular pin, do not try and continue to force it. Instead, you should take it to a professional at this point. Once the pins and links have been removed, be sure not to lose them.

Step 5

Once you have removed the sufficient number of links required to get the watch to comfortably fit your wrist, add the pins back into the remaining unconnected links on the bracelet to reconnect them. Pay close attention to put the pin back the right way. It should be put in the pinhole through the same side of the link it was removed from, and should be facing the same way and be of the same orientation that it was originally. Pay close attention to the link’s arrows to achieve this.

Place and then push the pin back into the link’s pinhole manually at first, and then use the link removal tool to push it into the link until the point that it is not sticking out from either side, and is sitting relatively evenly between the link’s two pinholes. The pin should be sitting tight and secure in the link. Force should not be used during this process, and be extra careful to only press against the pin itself with the link removal tool, and to not hit the link itself during this process.

Repeat this on every link that is not connected with the rest of the bracelet until the watch is wearable and the pins are secure. Then, place the watch on your wrist and attempt to close the clasp. Be sure the watch fits comfortably when the clasp is closed, and is not too tight or too loose.

If it does fit comfortably, proceed to step 6. If it does not fit comfortably, then repeat the steps above to remove more links if it is too loose, or to add more links if it is too tight. Once a comfortable fit is achieved, proceed to step 6.

Step 6

Store any extra links and pins safety and securely, and do not lose them. We do not sell extra links or pins separately, nor are such parts covered under warranty. Store the link removal tool and any parts associated with it safely and securely, and do not lose the tool or any of its associated parts.

Please note: If you encounter any major difficulties during the bracelet resizing process, then please stop what you are doing and take it to a watch repair shop or reputable jeweler to get the bracelet resized professionally. Do not try and force any part of the process. Be especially careful with plated watches.

We reiterate that Pangino is not responsible under any circumstances for any scratches or damage that occurs during the bracelet resizing process. Most watch repair shops or reputable jewelers are able to do this process quickly and easily, and we highly recommend taking your watch to one if you aren’t experienced with this process.

While Pangino provides a link removal tool with every order, the providing of this tool does not mean that Pangino encourages every customer to attempt this process themselves. Additional tools not provided by Pangino may also be needed during this process, which are the sole responsibility of the customer to acquire, and not the responsibility of Pangino to provide.

Water resistance in watches is measured in terms of atmosphere (ATM). These are measurements used in the watch industry to indicate how much pressure a watch can endure, not the depth to which the watch can be worn. This belief is a common misconception.

For example, if your watch is 5 ATM water resistant, this simply refers to how much pressure the watch case can withstand, not the depth to which it can be worn. When exposing any watch to water, ensure the crown is pushed in fully and seated securely, or screwed down completely if it is a screw down crown.

Most Pangino watches have a water resistance rating between 3 ATM and 5 ATM. If your Pangino watch falls within range, we DO NOT recommend prolonged exposure to or submerging in water, such as during swimming, showering, and any other extensive water contact activity.

Please adhere to our guidelines below based on your Pangino watch’s level of water resistance (which can be found on its caseback, marked next to “WATER RESISTANT” or “WR”, or in the specifications section of its product page on our website). Please also take into account whether your watch has a screw down crown or not.

If it does not, we do not recommend prolonged exposure to water. In general, unless classified as a dive watch with an appropriate level of water resistance, and a screw down crown (which should be screwed down during water contact), we do not recommend exposing any watch to water for a prolonged period of time.

Any water damage caused to any watch bought from Pangino, including damage caused by a lack of adherence to the water resistance guidelines, is not covered under warranty nor is it Pangino’s responsibility whatsoever.

Please note that water resistance ratings are not a permanent state of being. Exposure to harsh environments such as chlorinated pools, salt water, and any chemicals, can cause the gaskets (which seal the watch) to become weaker. This can compromise its level of water resistance. We recommend maintaining your watch by keeping it clean and dry, and free of any salt or chemicals.

Furthermore, we recommend avoiding the wearing of any watch while showering, regardless of its water resistance rating, as hot water or steam can fog the watch crystal or get moist air into the movement.

3 ATM / 30m / 100ft

Your watch can withstand most brief, light water contact that can occur during daily usage, such as accidental splashes from hand washing, light rain, or sweat. However, it is not suitable for being submerged into water at all, and should not be worn during swimming or showering, or any other extensive water activity.

We do not recommend showering with any watch, regardless of its water resistance rating, as hot water or steam has the potential to fog the watch crystal or get moist air into the movement.

5 ATM / 50m / 165ft

Your watch can withstand most water contact that can occur during daily usage, such as accidental splashes from hand washing, rain, or sweat. It is also suitable for occasional and brief exposure to shallow water for short time periods. However, it is not suitable for being exposed to or submerged under water for prolonged periods of time, such as during swims, water sports, or diving.

We do not recommend showering with any watch, regardless of its water resistance rating, as hot water or steam has the potential to fog the watch crystal or get moist air into the movement.

10 ATM / 100m / 330 ft

Your watch is suitable for being submerged in water during activities such as swimming, surfing, and snorkeling. However, it is not suitable for activities such as high-impact water sports, high board diving, aqua diving, or any sort of deep diving.

We do not recommend showering with any watch, regardless of its water resistance rating, as hot water or steam has the potential to fog the watch crystal or get moist air into the movement.

20 ATM / 200m / 660 ft

Your watch is suitable for being submerged in water during activities such as swimming, surfing, snorkeling, water sports, and some limited diving.

We do not recommend showering with any watch, regardless of its water resistance rating, as hot water or steam has the potential to fog the watch crystal or get moist air into the movement.

30 ATM and greater / 300m and greater / 990 ft and greater

Your watch is suitable for being submerged in water during activities such as swimming, surfing, snorkeling, high-impact water sports, scuba diving, or deep diving.

We do not recommend showering with any watch, regardless of its water resistance rating, as hot water or steam has the potential to fog the watch crystal or get moist air into the movement.

Quartz (including meca-quartz) watches use batteries that typically need to be replaced every few years (the exact duration varies based on a variety of factors). When the battery is depleted, the watch will no longer be keeping the time. Depleted batteries should be attended to immediately.

Do not open the watch caseback or attempt the battery replacement process yourself. Your quartz watch should only be opened by a professional. Therefore, please bring your quartz watch to a watch repair shop or a reputable jeweler to have the battery replacement process performed professionally.

IMMEDIATELY DISPOSE OF USED BATTERIES IN ACCORDANCE WITH LOCAL REGULATIONS. DO NOT DISPOSE OF BATTERY IN HOUSEHOLD TRASH OR INCINERATE. DO NOT RECHARGE. KEEP LOOSE BATTERIES AWAY FROM CHILDREN.

Please follow the steps listed here in order to maintain the quality of your watch and ensure its longevity.

1. Clean your watch regularly using a microfiber jewelry cloth.
2. Store your watch securely in the watch box it comes with, and close the box to prevent dust from getting in. Make sure it is kept in a dry place at normal room temperature.
3. Keep your watch dry as much as possible. Check your gaskets and seals regularly.
4. Avoid magnetic fields that can interfere with the workings of your watch.
5. Do not use excessive force on the crown of your watch.
6. Be gentle when handling your watch and avoid hitting or scratching it on surfaces.
7. Do not wear your watch during particular strenuous activities.
8. Service your watch regularly with a watch repair shop or reputable jeweler every three to five years.
9. The rubber seal and gaskets that keep dust and water out should be replaced every two to three years.
10. Do not try to open the watch case or dismantle it.
11. Avoid extreme temperatures.
12. Avoid overexposure to sunlight.
13. Avoid exposing your watch to harsh chemicals.
14. Have the battery professionally replaced with a watch repair shop or reputable jeweler immediately once it is depleted. Do not open the watch caseback or attempt the battery replacement process yourself. Refer to the “battery replacement” section above for more information.
